Handcrafted Premium Cable. By Paoletti.

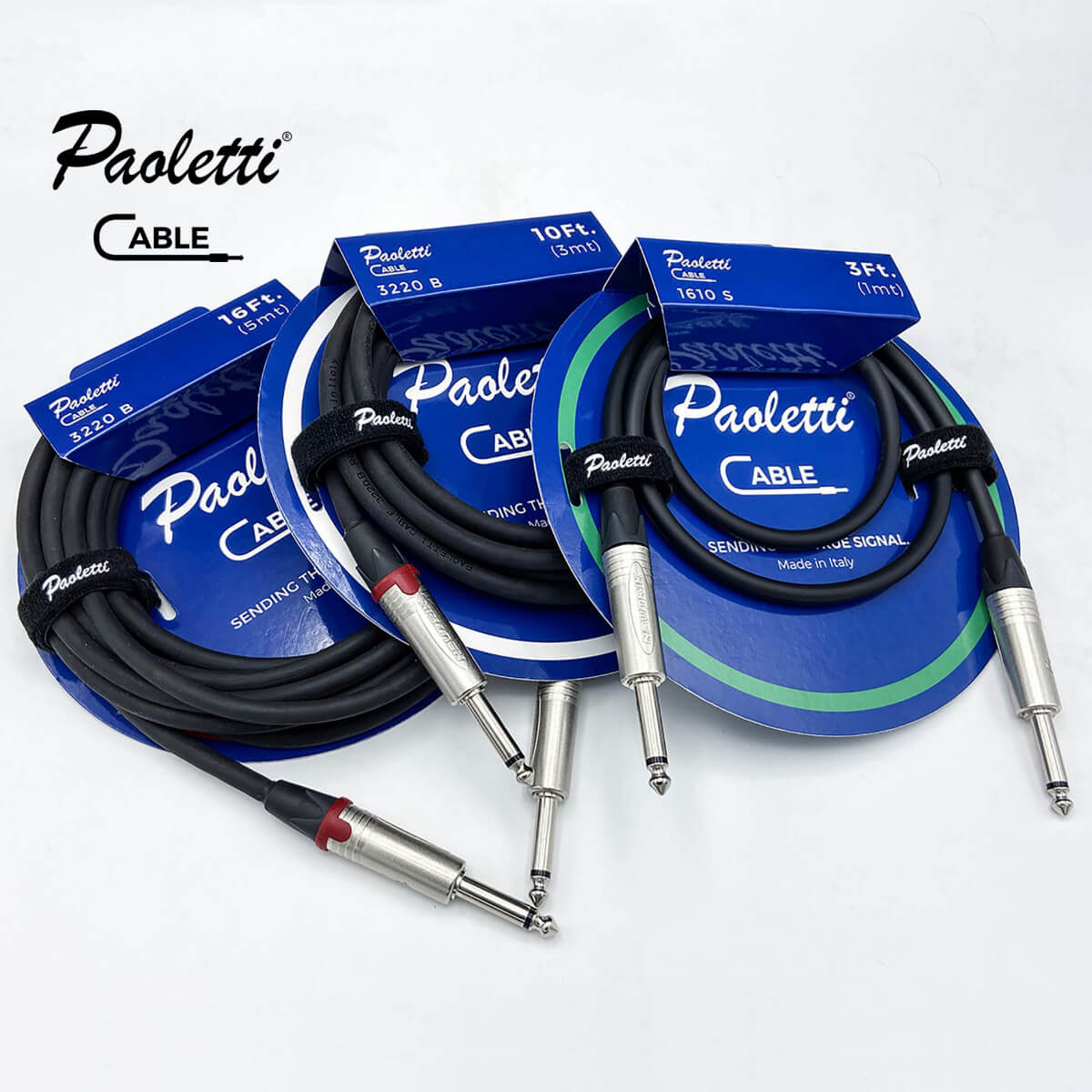

High sensivity musical instrument cable, designed for studio and live performance, balanced and shieled. Paoletti Cables, sell in 10 & 15 Ft lenghts, suitable for guitars, basses, keyboards are handcrafted and soldered in Italy, taking care of the whole process with high end components. The results are explosive dynamics and astonishing detail from any electric guitar.
For tone purists who make the most of the stage, this is your cable.

Plugs Offered: Straight – Straight, L – L, Straight – L

The cable is designed with a directional shielding circuit, be sure to place the red ring Jack into the Instrument. Other side, in the PA or Amp. Try yourself and experience the noisless feature.

Conductor & Insulation

  • 2 Elements
  • 20 AWG 26×34
  • Thinned Copper
  • Ethylene Propylene Diene Monomer / Diameter 0,58 mm

Outer Shield Material

  • Rayon + Tinned copper 87% coverage
  • Braid/Braid

Outer Jacket Material

  • Ethylene Propylene Diene Monomer
  • Thickness 0,89 mm / Nominal Diameter 6,65 mm

Electrical Characteristics

  • DCR 10.7 Ohm/1000ft
  • Capacitance Cond-to-Cond 35 pf
  • Capacitane Cond-to-Other 60 pf
  • Impedance 65 Ohm
  • max Amps current at 25°C = 4A
  • Voltage 600 V

Mechanical Characteristics

  • -55°C to 95°C
  • Bend Radius Stationary Min 69,85 mm Installation Min 78,74 mm


SENDING THE TRUE SIGNAL

INDOOR USE, EU CE MARK, EU DIRECTIVE 2011/65/EU ROHS II, EU DIRECTIVE 2012/19/EU (WEEE), CHINA ROHS II (GB/T 26572-2011)

PLENUM NUMBER 3220 B
